100100-DVi X-Ray Backscatter Scanner
X-Ray Backscatter Scanner is equipped with two generators arranged in perpendicular orientation and able to provide vertical and horizontal view of the screening object. The dual-view baggage inspection system create effective and convenient inspection solution.
Features
General Specifications
X-Ray Generator
Image Performance
Installation Data
| AI Technology |
| Backscatter Technology |
| Material Classification |
| Image Recall |
| Baggage Counter |
| Date and Time Display |
| Real-time Image Processing |
| High Image Resolution |
| User ID-Number |
| Multi-level User Management |
| System Work Time Counter |
| X-Ray Work Time Counter |
| Image Store System |
| Description |
| Dimensions |
| Weight |
| Tunnel Size |
| Conveyor Height |
| Conveyor Speed |
| Conveyor Load |
| Dose Per Inspection |
| Leakage |
| Film Safety |
| General Specification |

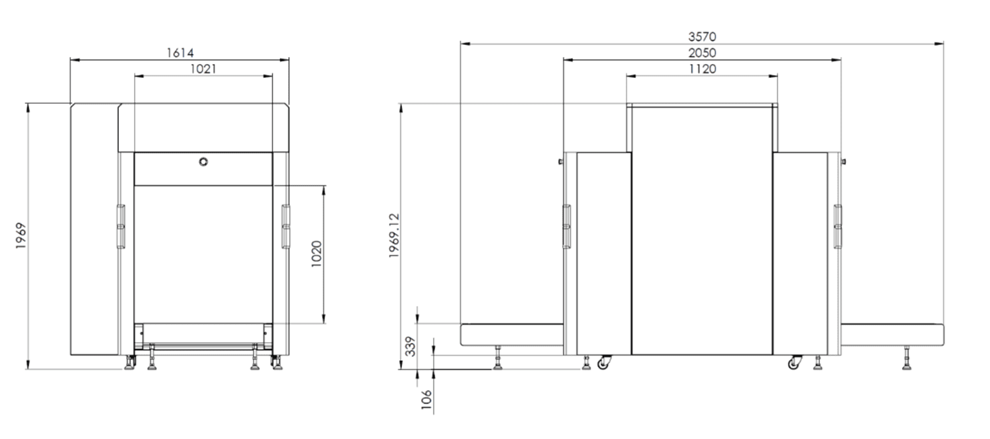

| 3570 (L) x 1614 (W) x 1969 (H) [mm] |
| approx. 1050 kg |
| 1020 (W) x 1020 (H) [mm] |
| approx. 350 mm |
| 0.2 m/s |
| 200 kg |
| < 3.4 μSv |
| < 2 μSv/H |
| Guaranteed ISO 1600 / DIN33 |
| Description |
| Anode Voltage |
| Tube Current |
| Maximum Output Power |
| Cooling / Duty Cycle |
| Orientation |
| X-Ray Generator |
| Operating at 160kV (adjustable from 100 to 160 kV) |
| 0.8mA (adjustable from 0.3 to 1.25 mA) |
| 200W |
| Sealed Oil Cooling / 100% |
| Horizontal and vertical (2 generators) |
| Description |
| Steel Penetration |
| Wire Resolution |
| Image Resolution |
| Monitor |
| Image Performance |
| 30 mm steel |
| 36 AWG (0.13 mm metal wire) |
| 1280 x 1024 / 24 bits |
| Flat panel LCD monitor |
| Description |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Working Voltage |
| System Sound Level |
| Power |
| Installation Data |
| 0°C to 45°C |
| -20°C to 50°C |
| 5% to 95% (non-condensing) |
| AC 230V ± 10% |
| < 70dB |
| < 900W |
