18300-DVi X-Ray Backscatter Scanner
18300-DVi X-Ray backscatter scanner is specially designed for inspection of palletized and large-scale goods. It equipped with two independent compact medium energy 300kV X-ray generators arranged in perpendicular orientation and able to provide vertical and horizontal view of the screening object. Creates effective and convenient inspection of tightly packed palletize goods while shortening inspection times. The scanner meets the requirement and application of pallets screening and LD-3 airfreight containers. Ensure ease the feed and discharge of heavy package without disruption.
Features
General Specifications
X-Ray Generator
Image Performance
Installation Data
| AI Technology |
| Backscatter Technology |
| Dual View X-ray inspection |
| Universal use for palletized and bulk items |
| Excellent image presentation with optimized generator orientation |
| Roller conveyors for load up to 2000kg evenly distributed |
| Tunnel size large enough to load LD-3 airfreight containers |
| Typical penetration 60mm of steel |
| Description |
| Dimensions |
| Weight |
| Tunnel Size |
| Max. Object Size |
| Conveyor Type |
| Conveyor Height |
| Conveyor Speed |
| Conveyor Load |
| Dose Per Inspection |
| Film Safety |
| General Specification |

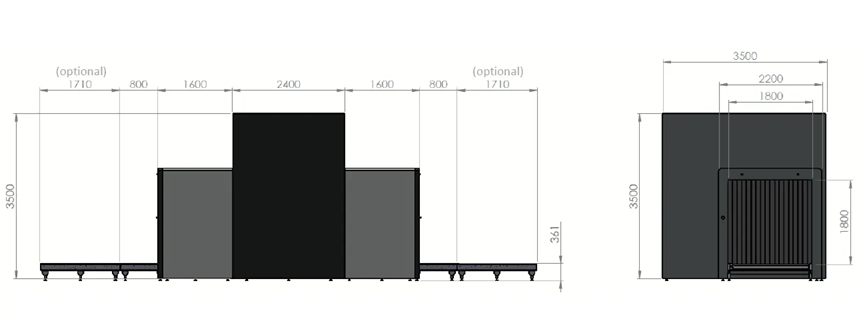

| approx. 7200 (L) x 3500 (W) x 3500 (H) [mm] |
| approx. 7500 kg |
| 1800 (W) x 1800 (H) [mm] |
| 1750 (W) x 1750 (H) [mm] |
| Small pitch roller conveyor |
| approx. 361 mm |
| Standard 0.2 m/s |
| Standard 2000 kgs evenly distributed |
| approx. 2 μSv |
| Guaranteed ISO 1600 / DIN33 |
| Description |
| Anode Voltage |
| Tube Current |
| Cooling / Duty Cycle |
| Orientation |
| X-Ray Generator |
| Operating at 300kV |
| 1.5mA |
| Sealed Oil Cooling / 100% |
| (2 generators) View 1: Diagonal from bottom View 2: Diagonal from side |
| Description |
| Steel Penetration |
| Wire Resolution |
| Image Resolution |
| Image Presentation |
| Monitor |
| Image Performance |
| Standard 55mm / Typical 60mm |
| Standard 32 AWG (0.2mm) |
| 1280 x 1024 / 24 bits |
| B/W, color |
| Flat panel LCD monitor |
| Description |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Working Voltage |
| Power Consumption |
| Installation Data |
| 0°C to 45°C |
| -20°C to 60°C |
| 10% to 90% (non-condensing) |
| 400 VAC, 3 phases 50Hz/60Hz |
| approx. 3.5 kVA |
