Radiation Portal Monitor

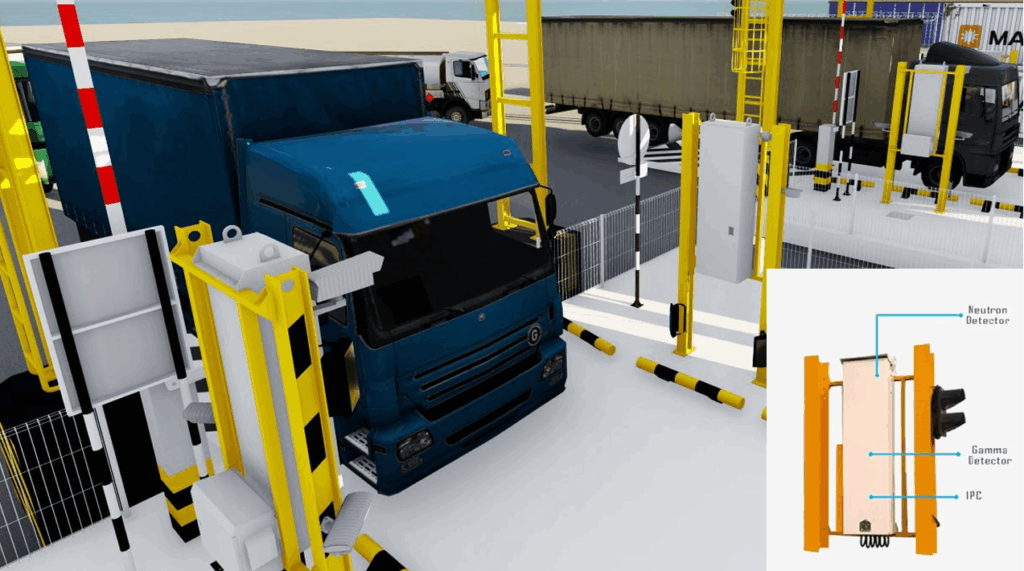

A Radiation Portal Monitor (RPM) is a large-scale, passive radiation detection system specifically engineered to automatically screen vehicles, cargo containers, and pedestrians for the presence of radioactive materials—without interrupting the normal flow of traffic. By operating in a non-intrusive manner, RPMs enable high-throughput screening while ensuring the safety and comfort of both operators and the public.
Deployed at strategic security checkpoints such as border crossings, seaports, airports, power plants, critical infrastructure, and government facilities, RPMs play a vital role in countering the illicit transport of nuclear and radiological threats. They form part of a layered defense strategy, complementing other security measures to prevent the smuggling or accidental movement of hazardous radioactive substances. This cutting-edge system seamlessly integrates state-of-the-art sensors with an intuitive user interface, allowing for smooth and efficient operation even in busy, high-traffic environments.
Stay Connected Anywhere with the RPM Mobile App

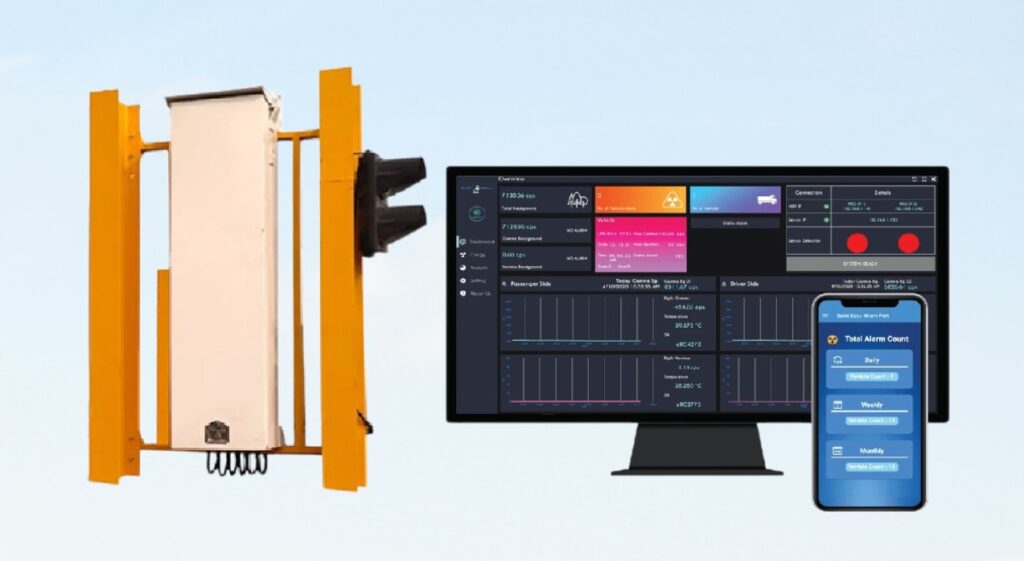

Our Radiation Portal Monitor Mobile App puts real-time security intelligence in the palm of your hand. Receive instant alerts the moment abnormal radiation levels are detected, no matter where you are. Monitor multiple RPM units remotely, view live detection data, and access alarm history anytime—without being tied to the control room.
Designed for fast decision-making and rapid response, the app integrates seamlessly with CCTV feeds, License Plate Recognition (LPR), and other security systems, giving you a complete situational overview on your smartphone or tablet. Perfect for border agencies, port authorities, and critical facility operators, this mobile solution ensures your security team can act swiftly, efficiently, and from anywhere.
📱 RPM Mobile App – Key Advantages
Stay Connected, Stay Protected. Our mobile app brings the full power of your Radiation Portal Monitor directly to your pocket.
✅ Instant Alerts – Receive push notifications the moment abnormal radiation is detected.
✅ Live Monitoring – View real-time radiation readings from anywhere.
✅ Alarm History Access – Review past events and detection logs on the go.
✅ Integrated Security View – Connect with CCTV and License Plate Recognition (LPR) for complete situational awareness.
✅ Rapid Response – Act immediately without waiting for control room updates.
✅ Multi-Site Oversight – Monitor multiple RPM units across locations from a single device.
Faster decisions, quicker interventions, and stronger protection—wherever you are.
Dual Panel Portal Monitor
| 2 Panels Gamma Detector Only |
| Gamma Detectors: 2 |
| 1 Gamma Detectors on each side |
| Dual Panel Design |
| High Sensitivity Scintillators |
| Non-Intrusive Screening |
| Compact & Cost-Effective |
| Rugged Outdoor Operation |
| 2 Panels Gamma Detector + Neutron Detector |
| Gamma Detectors: 2 Neutron Detectors: 2 |
| 1 Gamma Detector & 1 Neutron Detector on each side |
| He3 free neutron technology |
| Dual Radiation Detection |
| Dual Panel Design |
| High-Sensitivity Detectors |
| Non-Intrusive & Automated |
| Rugged, All-Weather Design |
4-Panel Portal Monitor
| 4 Panels Gamma Detector Only |
| Gamma Detectors: 4 |
| 2 Gamma Detectors on each side |
| 4-Panel Design |
| Enhanced Sensitivity |
| Non-Intrusive Screening |
| Scalable & Reliable |
| Weatherproof & Rugged |
| 4 Panels Gamma Detector + Neutron Detector |
| Gamma Detectors: 4 Neutron Detectors: 2 (Bottom panels only) |
| 2 Gamma Detector & 1 Neutron Detector on each side |
| He3 free neutron technology |
| Dual Radiation Detection |
| 4-Panel Design |
| High-Sensitivity Detectors |
| Maximum Coverage |
| Non-Intrusive & Automated |
| Rugged & Reliable |
Features
- Gamma Detection or Gamma and Neutron Detection
- Mobile apps help to monitor radiation level of each vehicle passing through the radiation detector
- Data visualization in statistical chart inside the mobile apps
- Cloud platform for data centralization and synchronization
- He3 free neutron technology
- Real-time alarm categorization to ensure optimal threat detection and minimal false alarm
- Data transfer to network and central alarm station, secure remote access can be set up
- High detection performance
- Reliable high speed screening
- Classification of type of radiation sources
- Automatic record the presence of radiation for vehicles
- Integrated with motion sensor for tracking purposes
Applications
Our system is use in:
- Border Crossings & Customs
- Seaports & Airports
- Nuclear & Industrial Facilities
- National Security & Event Protection
- Military Bases

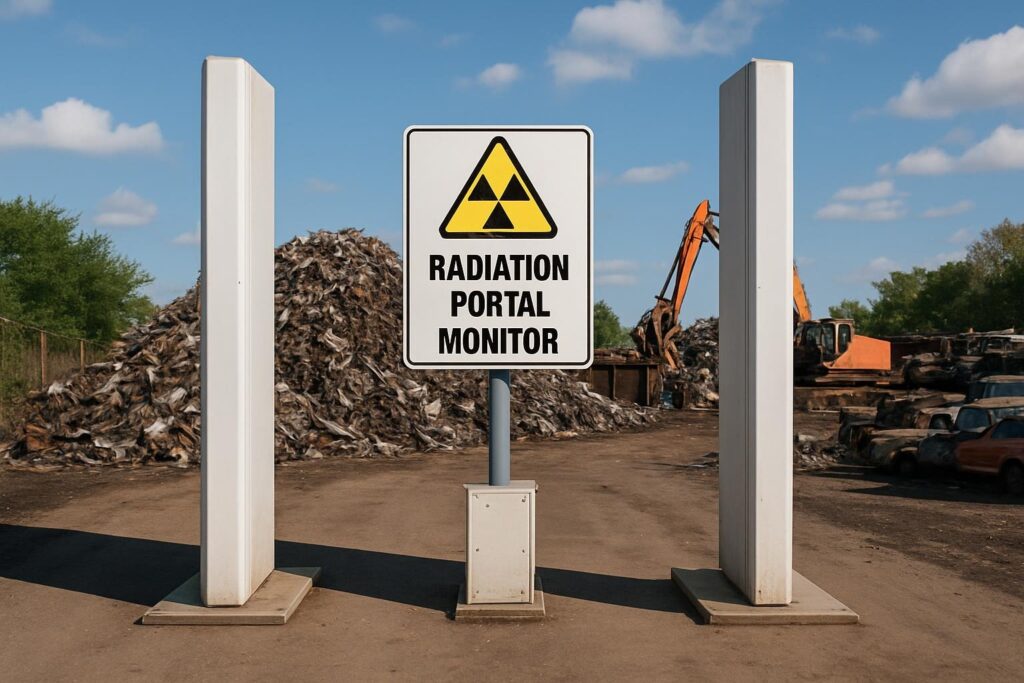

- Steel plants
- Scrap yards
- Waste incinerators
Hardware Specification
| Description |
| Dimension |
| Compliance |
| Data Output |
| Gamma Detector |
| Gamma Sensitivity |
| Neutron Detectors |
| Neutron Sensitivity |
| Alarm Categorization |
| Peripherals |
| Operation Temperature |
| Humidity |
| Ingress Protection |
| General Specification |
| 2 pillar per lane, each dimension: Height: 3663 mm Width: 1040 mm Depth: 750 mm including steel structure |
| Performance – ANSI 42.35 Data Protocol – ANSI 42.42 |
| Provide alarm classification, alarm status, gamma count rates, neutron count rates and background count rates directly to third party user interfaces |
| 25.4 litre (38.5 x 122.3 x 5.4) cm plastic scintillator (PVTs) with integrated multichannel analyzer (MCA). The detector provide gamma radiation sensitivity in the energy range from 20keV to about 3 MeV, ensuring static efficiency and dynamic sensitivity in the whole detection range |
| Approx. 150000 cps or µSv/h for Cs-137 |
| 87.2 litre (12.7 x 31.8 x 215.9) cm replace non He-3 material with 6LiF/ZnS(Ag) material. The entire assembly is enclosed within high density polyethylene moderator box |
| Min. 2.5 cps/ng of moderated Cf-252 at 2 meters |
| Alarm categorization allows optimal threat detection and minimal false alarm rate |
| Occupancy sensors; optional: CCTV, OCR, LPR, audible/visual alarm annunciation |
| -30C – 55C (down to -40C optional) |
| up to 99% |
| IP56 (other IP levels possible) |
Additional
- Solar Energy & Battery Backup System
- Server & Cloud Data Storage
- Optical Character Recognition (OCR) – click to read more
